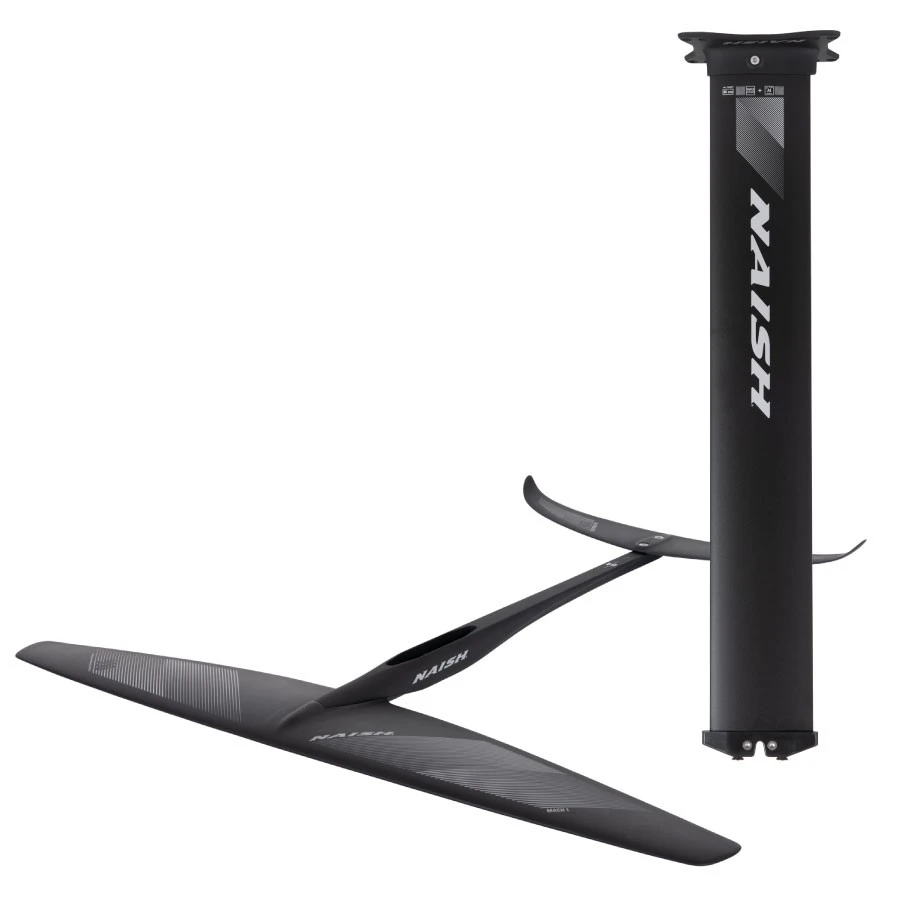

Naish 2024 Mach-1 Foil – Complete Foil

The MACH 1 foil range is designed to provide the highest level of speed and control to wing foilers, but is also an ideal kite, windsurf and surf foil. Drawing inspiration from the Wind/Wing HA 914, this series features extra thin, very stable and slippery foil sections that prioritize speed while also offering a surprisingly wide range, good glide and low stall speed. Take offs are relatively simple as long as riders commit to providing enough power when necessary. With its diverse capabilities, the Mach 1 will prove particularly useful for experienced wing foilers seeking a front wing option that covers all their needs regardless of riding conditions – flat water blasting, racing, jumping or carving in the surf. Furthermore, its unique design ensures that it can remain dynamic even during high speed runs while keeping drag levels minimal – a key feature which allows riders to maintain control without sacrificing speed. The Mach 1 is also outfitted with strategically placed anhedral wings which allow for improved turning ability while simultaneously promoting lift at lower speeds. All of these factors combine to create a reliable piece of equipment suitable for both recreational and competitive foiling in any environment.

Key Features:

Speed – Fast and stable wing.
Thin and stable foil section – Prioritizes speed and gliding.
Minimal Drag – Great control at high speeds.
Anhedral wings – Improved turning ability and promotes lift at low speeds.
100% Prepreg 3K Carbon Outer Layer Satin Finish – Durable and lightweight construction.
Dual Expansion Core Construction – Molded lightweight layup utilizing UD Carbon and Glass Laminate.
Scarf Joint Connection to Fuselage – Proven and compatible with earlier Naish fuselage models.

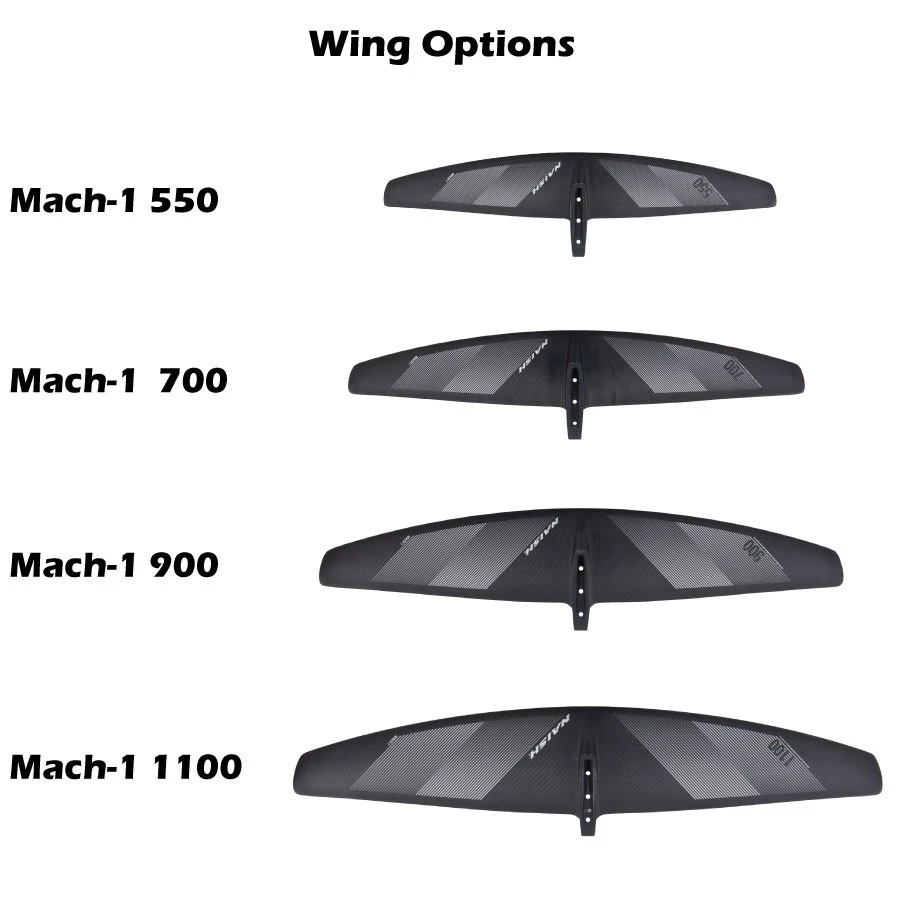

Mach-1 Wing Sizes:

Mach-1 550
Mach-1 700
Mach-1 900
Mach-1 1100

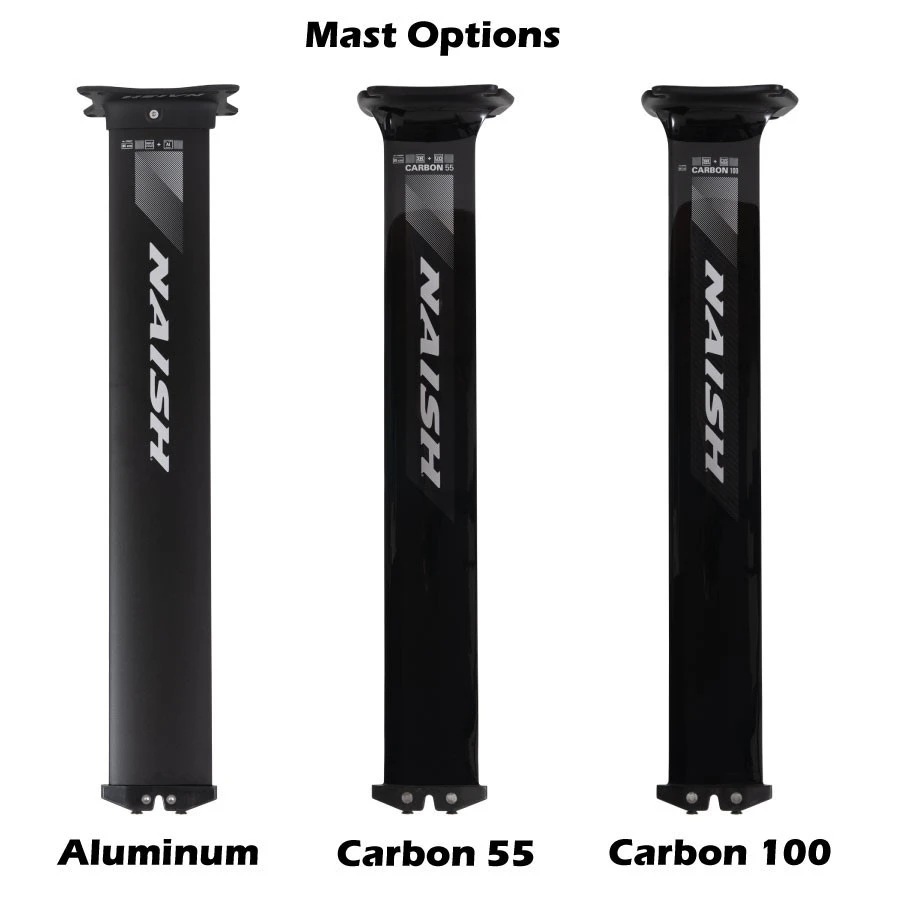

Mast Options:

Aluminum

The Naish alloy mast has been precision-engineered to feature an updated version of the 6061 aircraft-grade aluminum extrusion that is significantly more robust than its predecessor, with only a slight increase in weight achieved through a result of a new sectional structure that places thicker walls around key buckling points while still holding its original exterior measurements and streamlined profile. Additionally, the mast has been further reinforced with a bonded and screwed board mount composed of two M8 screws and hex bolt for maximum durability. Fastening this mast to the fuselage is done by means of two M8 screws and a molded fuselage connector which also helps protect against corrosion. Included with the setup is a Torx T30 driver which can be used to securely tighten all screw connections.

Aluminum Mast Features:

Foam core, aluminum mast extrusion
Tripple bridge stringer
Screwed and glued mast to board connection
Screwed and glued mast to fuselage connection

Carbon 55

The Naish C55 monocoque composite mast is an innovative piece of engineering that provides a state-of-the-art combination of affordability and performance. Its advanced construction includes a dual expanding foam core, which helps to reduce the weight significantly without sacrificing any strength or stability. This smaller profile is shared with the C100 mast, allowing for reduced drag during use. The installation of two 12 mm stainless steel inserts into the mast structure, combined with our specially designed molded fuselage connector, has proven to be an effective solution in eliminating corrosion issues and providing a long-term corrosion barrier. The combination of this precision engineering allows the user to enjoy superior performance at an excellent cost-benefit ratio that won?t compromise long-term durability.

Carbon 55 Mast Features:

High temperature/high pressure prepreg construction
Inner foam core for optimized weight
UD inner layer construction combined with 3K outer layer
Gloss finish for easy cleaning and keeping an optimized surface without sanding

Carbon 100

The new Naish C100 monocoque carbon mast is the pinnacle of cutting-edge engineering and design, offering unparalleled performance benefits. Crafted with a combination of 3K and UD carbon fibers, it provides superior bending and torsional rigidity while achieving a ?direct drive? feel for maximum control. Additionally, its dual expanding foam core allows for an exceptionally light weight build that enhances speed and control while preventing corrosion thanks to the integration of (2) 12 mm stainless steel inserts laminated into the mast structure as well as a molded fuselage connector which serves as a protective barrier against corrosion.

Carbon 100 Mast Features:
