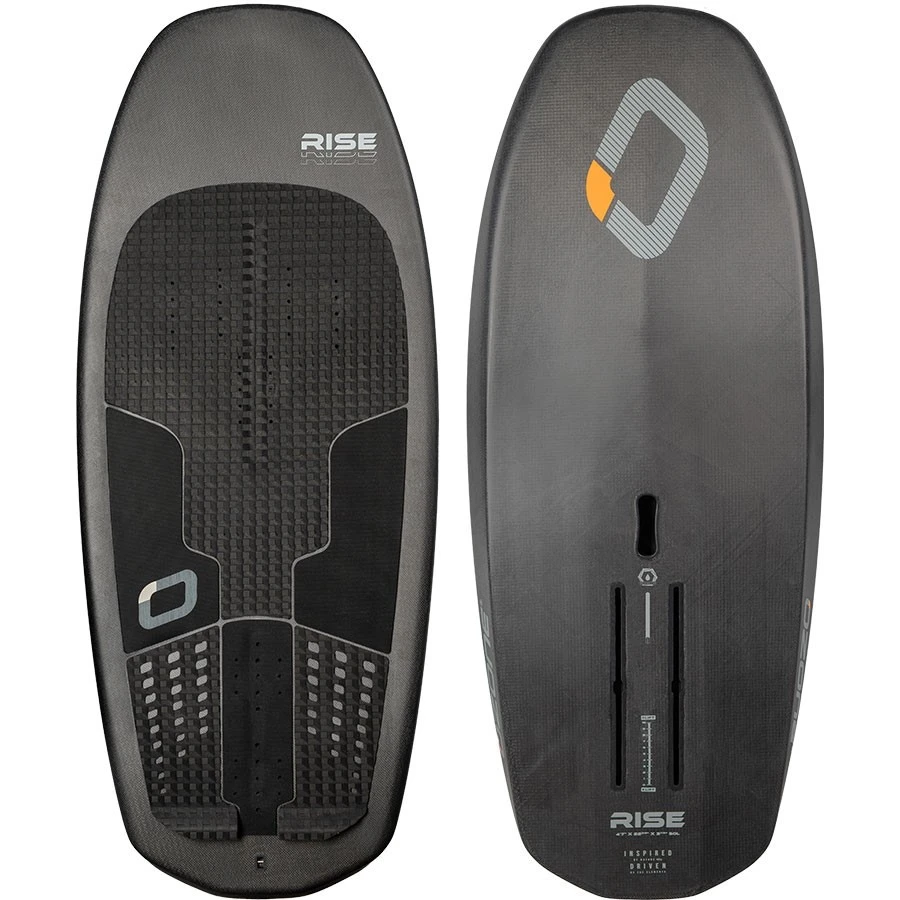

Ozone Rise V1 Wingboard

One Board, A world of performance possabilities!

The Rise V1 is a cutting edge product that will suit intermediate riders and beyond, whatever their ambition. Designed to be accessible and fun, riders will enjoy feeling the direct connection with their foil, that not only helps improve performance levels, but provides that all-important extra layer of user-experience.
Entirely constructed in a European factory with a Sustainable Surf Eco Certificate, there are many design features that combine to produce the Rise V1’s exciting and energy-rich performance, which is suitable for a huge range of riders.

At a glance:

Ideal for intermediates and beyond who want to make quick progress
Feel an excellent connection with the foil underfoot
Carbon design advantages with durable, water-resistant 50K foam
High-spec design features proven to help you manage speed in chop

Sizes:

40L – 4’5″ x 21 1/2″ x 3 3/8″
50L – 4’7″ x 22 3/8″ x 3 7/8″
62L – 4’10” x 23 5/8″ x 4 3/8″
75L – 5’1″ x 24 3/4″ x 4 3/4″
90L – 5’5″ x 26 1/4″ x 5 1/8″

WHO IS IT FOR?

The Rise is more than just a platform. We wanted to create a design that was detailed with highly functional, intricately shaped features that offer progressive levels of performance. Built with high-end materials and the latest construction techniques, this is a board for anyone who is beyond the basics and ready to feel real engagement underfoot.

Key Features:

Sporty and responsive ride and super manoeuvrable feel when turning
Direct and connected feel with the foil that also leads to very efficient and effective pumping
Perfect balance between length and width to aid ease-of-use but also keeps swing weight to a minimum for performance and progression
Easy waterstarts and quick acceleration onto the plane
Deep waterstarts are also made easier as the Rise can quickly be pumped up out of the water
Excellent recovery from touchdowns and fewer nose dive risks with reduced chop washing over the nose
Ideally balanced ride for your preference with lots of options for mast position to allow for more or less lift
Secure and comfortable underfoot grip, perfect for strapped or strapless performance in bare feet or booties
Foot straps can be configured in many positions and are made with soft foam and neoprene to offer superb comfort. They can also be pressed flat to cause less hindrance to your upper body when paddling
Very easy to carry

Technical Features:

Lightweight full carbon construction with 50K foam, internal reinforcements and extra carbon layer reinforcements wrapped around the nose, rails and tail.
The foam is also waterproof. Ding it and don’t worry; you can keep on riding!
Compact shape with refined volume distribution from nose to tail

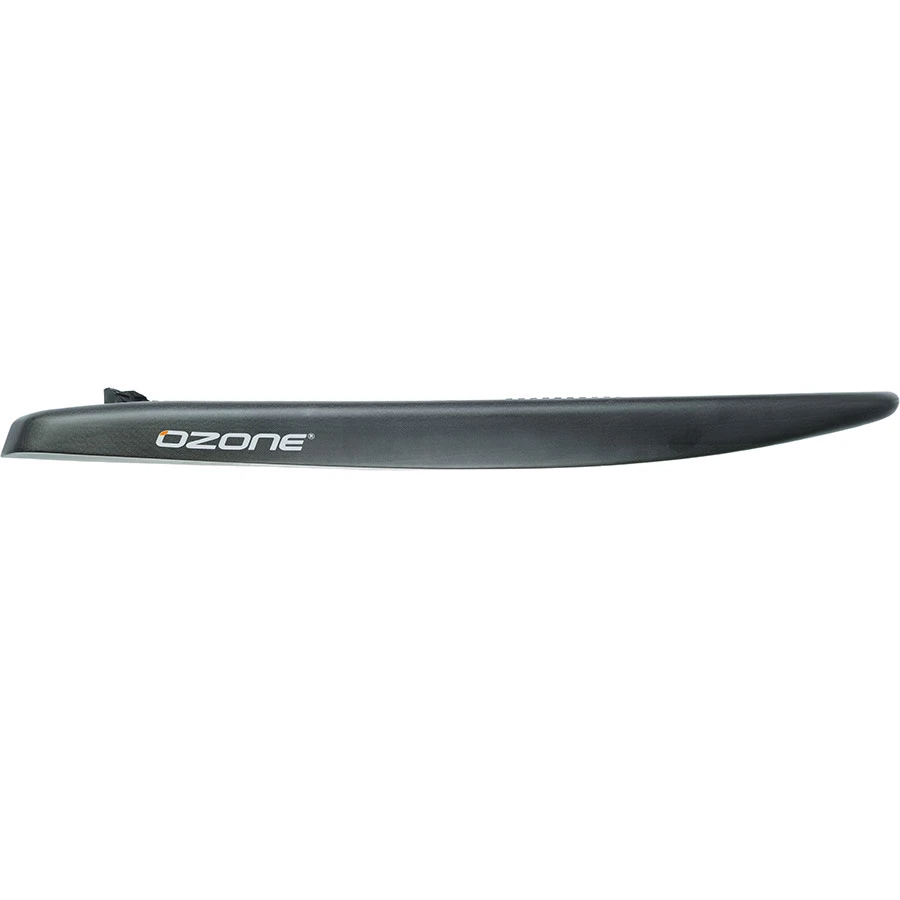

Progressive rockerline with medium nose rocker
Double concave hull in nose area transitions to V tail (with a flat section around the mast track) accelerates water flow, immediately adds stability as soon as the board moves forward and aids release when needed
Progressively bevelled rails with increased angle at the nose and front of the board, evolving to a straighter rail towards the rear of board with reverse-angled tail for excellent water release
Recessed concave deck lowers centre of gravity for improved feeling and control

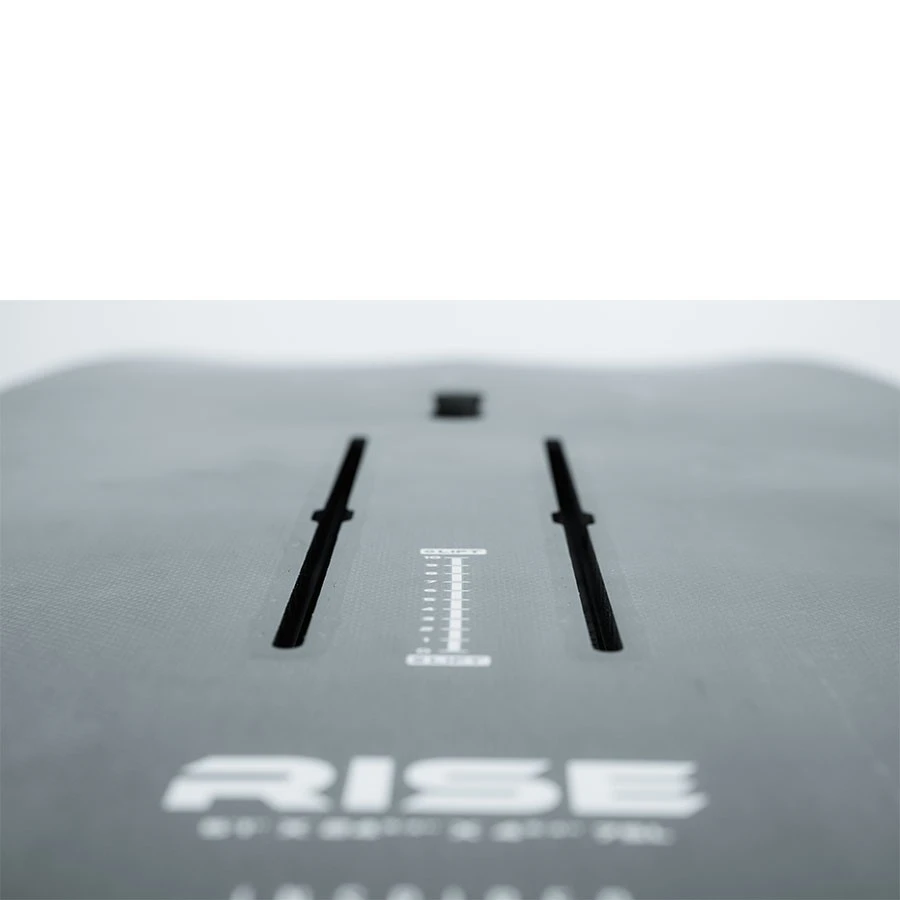

Ultra strong, custom moulded extended mast tracks

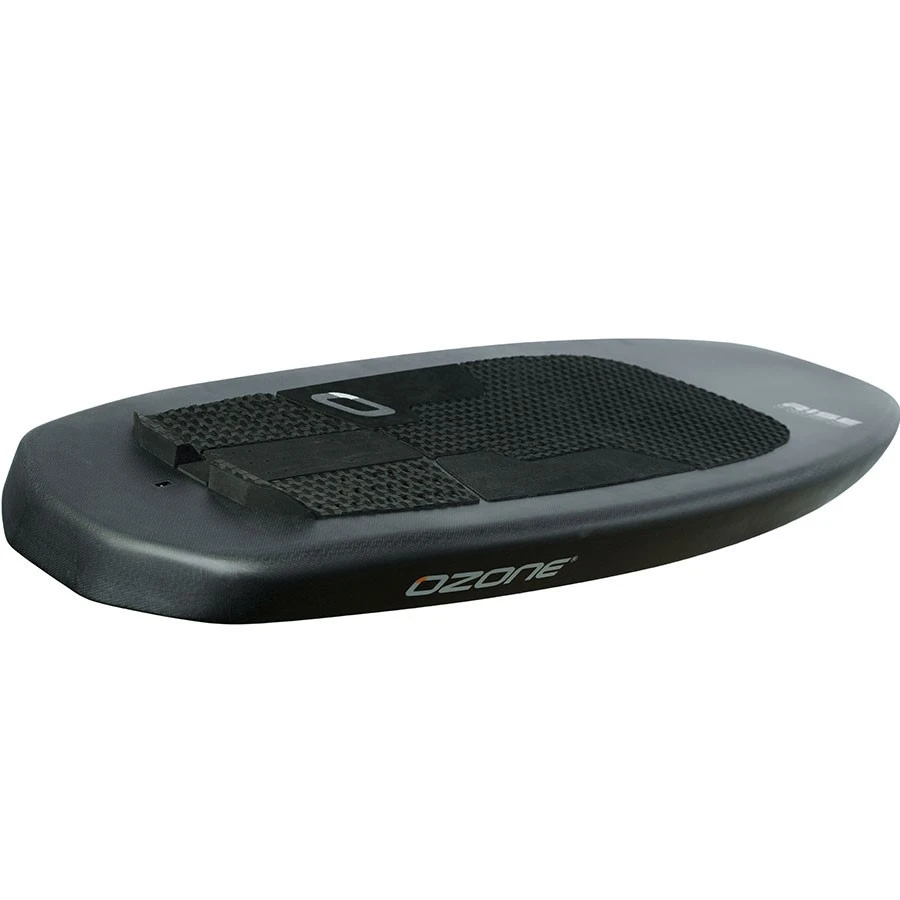

High quality EVA grip with centre line arch bumps and tail kick
Strong insert blocks for footstraps, easily positioned with self-tapping screws
Deep carry handle on hull

Construction Details:

A TRUE PERFORMER, INSIDE AND OUT
The Rise V1 is entirely constructed in a European factory with a Sustainable Surf Eco Certificate. Many design features work in unison to produce the Rise V1’s accessible but exciting and energy-rich performance.

Central to the practical performance-led design is the full carbon construction that encases a uniquely developed 50k closed cell foam. Bringing several benefits, the 50k foam is incredibly strong (capable of withstanding 50,000 kg loads per square metre) and offers excellent flexibility for high performance riding and is also more resistant to damage.

Perhaps the most practical advantage of all for the regular traveller is that the foam is also waterproof. Ding it and don’t worry; you can keep on riding, enjoying your session without fear of the board becoming water-logged before you get a chance to fix it.

Internal reinforcements, including extra carbon layers that wrap around the nose, rails and tail have been added to further ensure your riding confidence when it comes to stepping up your levels of aggression in more demanding conditions.

CONSTRUCTED FOR A TRUE SENSE OF CONNECTION

Thanks to its stiff, lightweight, full carbon shell and responsive 50k foam core, the Rise V1 accelerates the effect of your every input and provides rapid feedback from the foil that will also help improve the impulsiveness of your technique.

Where the foil mast connects to your board can be a site where connectivity is compromised, but not so here. The super strong custom designed foilbox is CNC cut with the board, then placed inside an ultra high-density PET honeycomb layer before being sandwiched within carbon, making an ultra strong and unified connection.

MORE UNITY AND MORE STRENGTH

Using a progressive manufacturing process called vacuum infusion, rather than the more factory-standard vacuum bagging, the outer layers of fibre (in this case carbon) are wrapped around the closed cell foam core and then vacuum bagged before any resin is applied; crucially, while the laminate is still dry. This method compresses the layup, bringing the fibres far closer to the foam core. When injected into the vacuum, resin penetrates all layers of fibre and into the foam core’s textured surface. This infusion of resin eliminates micro air pockets, creating the ultimate bond and increasing resistance to delamination.
